310S Stainless Steel

Detail

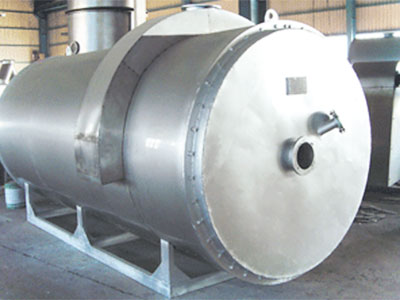

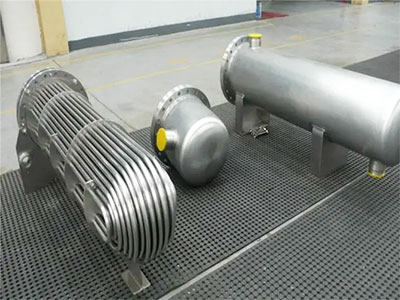

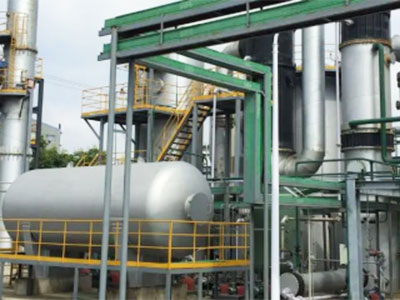

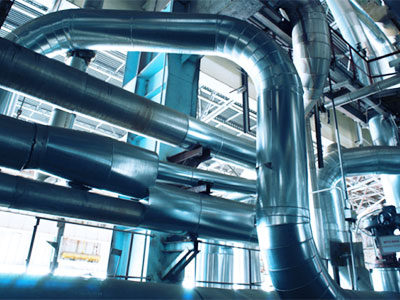

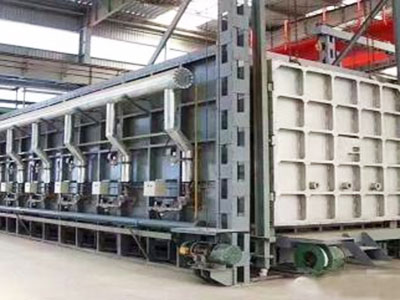

310S stainless steel is an austenitic chromium-nickel stainless steel, which has good oxidation resistance, corrosion resistance, high temperature resistance, and because of the higher percentage of chromium and nickel, it has much better creep strength and can continue to work at high temperatures. Has good high temperature resistance. Due to the high content of nickel (Ni) and chromium (Cr), it has good oxidation resistance, corrosion resistance, acid and alkali resistance, and high temperature resistance, and is widely used in exhaust pipes, pipes, heat treatment furnaces, heat exchangers, incinerators, etc. requiring heat resistance Sexual steel grades, such as: stainless steel storage tanks, hot blast furnaces, high temperature furnaces, water treatment equipment, etc.

Grade	310S Stainless steel
Product	Stainless Steel Plate/Sheet	Stainless Steel Coil	Stainless Steel Pipe/Tube	Stainless Steel Selt/Strip
Thickness	0.3-100mm	0.3-16mm	0.3-60mm	0.05-16mm
Width	1000-3000mm	1000-3000mm	6-2000mm	10-2000mm
Length	2000*10000mm	Ton	1000*6000mm	Ton
Surface	NO.1, NO.2D, NO.2B, BA, NO.3, NO.4, NO.7, NO.8, HL, 6K, 8K etc.
Services	Product thickness, size and surface can be provided upon request
MOQ	1 Ton	3 Ton	By size	1 Ton
Certified	ISO, SGS, BV, CE etc
Standard	ASTM, AISI, SUS, JIS, EN, DIN, BS, GB etc
Payment method	L/C or T/T.
Package	Waterproof paper + metal tray + angle steel protection + steel belt or as required.
	The internal dimensions of the container are as follows:
	20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(height) about 24-26CBM, 23MTS
	40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(height) about 54CBM, 27MTS
	40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(height) about 68CBM,27MTS
Application field	Food industry: kitchen equipment, food processing equipment, refrigeration equipment, etc.
	Transportation equipment: railways, automobiles, ships, yachts, lighthouses, etc.
	Storage equipment: oil storage tanks, water storage tanks, sinks, etc.
	Construction industry: tunnels, bridge decks, roofs, high and low buildings, water pipes, etc.

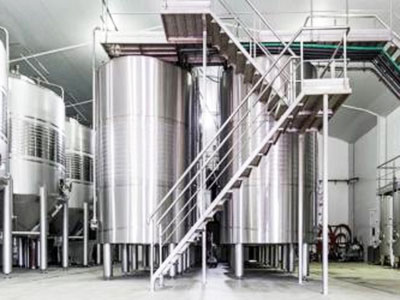

	Brewing: wine tanks, beer tanks, wine storage tanks, etc.
	Others: drying equipment, granulator, conveyor, conveyor, mixer, etc.
Label	There are no fixed sizes of stainless steel products only common sizes. All grades, sizes, thicknesses and surfaces can also be custom cut on request.

Chemical composition:

Grade	Chemical composition
Grade	C	Si	Mn	P	S	Ni	Cr
SUS310S	≤0.08	≤1.50	≤2.00	≤0.045	≤0.030	19.00-22.00	24.00-26.00

Physical parameters:

Solid Solution Mechanical Properties Performance Chemical Composition
Yield Strength	Tensile Strength	Elongation %	hardness
≥205	≥520	≥40	≤200

Surface:

Surface Finish	Characteristics	Definiton	Application
NO.1	Silver, matt	Finished by hot-rolling, annealing and pickling characterized by white pickled surface	Applications without glossiness requirements
NO.2D	Silver	The finishes after cold rolling, by annealing ,pickling or other equivalenttreatment	Petrochemical equipment, auto parts. building materials, steel pipes etc.
NO.2B	Glossiness is stronger than No.2D	The finish after cold rolling, by annealing pickling and with SKIN PASS process	Almost all applications etc.
NO.BA	Glossiness As a mirror	Cold rolled, bright annealed and skin-passed, theproduct have excellent brightness and good reflexivity like mirror	Building materials, kitchenware etc.
NO.3	Rough grinding	Polished with abrasive meterial of grit#100-#120, have better brightness with discontinuous coarse stria	Nterior and exterior decoration, elect onicproduct appearance, kitchen equipment etc.
NO.4	Hairline grinding	Polished with abrasive meterial of grit#100-#120, have better brightness with discontinuous coarse stria	Bathtubs, food fittings, interior and exterior decor etc.
NO.7	Close to mirror grinding	Polished with abrasive meterial of grit#600	For art, for decoration etc.
NO.8	Mirror grinding	Polished with abrasive meterial of grit#800	Buildings, mirrors, decorations etc.
HL	Hairline grinding	Polished with suitable abrasive meterial on the NO.4 finish and has continuous streaks	Building interior and exterior decoration etc.
