347 Stainless Steel

Detail

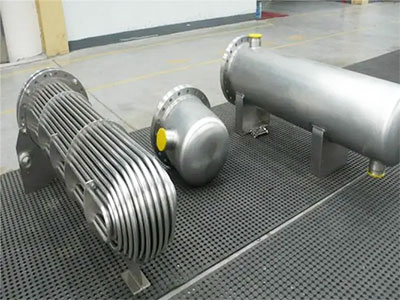

347 is an austenitic stainless steel with good resistance to grain direction corrosion. SUS347 stainless steel has better creep stress resistance, stress cracking resistance, excellent corrosion resistance, good intergranular corrosion resistance, good low temperature toughness, easy forming and welding. Widely used in aviation, power generation, chemical, petrochemical, food, papermaking and other fields, such as making containers, pipes, heat exchangers, shafts, etc. It can also be used as a welding material.

Grade	347 Stainless steel
Product	Stainless Steel Plate/Sheet	Stainless Steel Coil	Stainless Steel Pipe/Tube	Stainless Steel Selt/Strip
Thickness	0.3-100mm	0.3-16mm	0.3-60mm	0.05-16mm
Width	1000-3000mm	1000-3000mm	6-2000mm	10-2000mm
Length	2000*10000mm	Ton	1000*6000mm	Ton
Surface	NO.1, NO.2D, NO.2B, BA, NO.3, NO.4, NO.7, NO.8, HL, 6K, 8K etc.
Services	Product thickness, size and surface can be provided upon request
MOQ	1 Ton	3 Ton	By size	1 Ton
Certified	ISO, SGS, BV, CE etc
Standard	ASTM, AISI, SUS, JIS, EN, DIN, BS, GB etc
Payment method	L/C or T/T.
Package	Waterproof paper + metal tray + angle steel protection + steel belt or as required.
	The internal dimensions of the container are as follows:
	20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(height) about 24-26CBM, 23MTS
	40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(height) about 54CBM, 27MTS
	40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(height) about 68CBM,27MTS

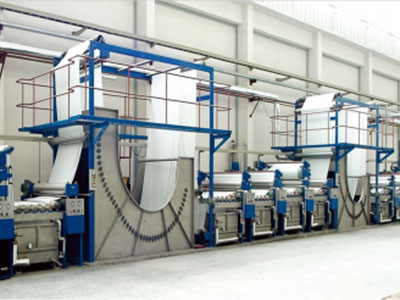

Application field	Food industry: kitchen equipment, food processing equipment, refrigeration equipment, etc.
	Transportation equipment: railways, automobiles, ships, yachts, lighthouses, etc.

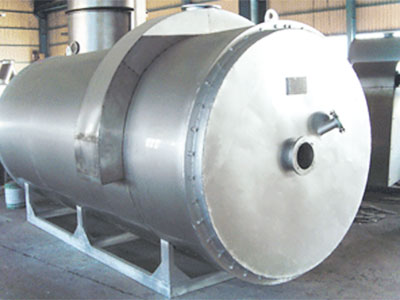

	Storage equipment: oil storage tanks, water storage tanks, sinks, etc.
	Construction industry: tunnels, bridge decks, roofs, high and low buildings, water pipes, etc.

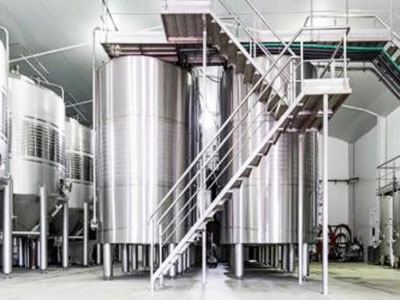

	Brewing: wine tanks, beer tanks, wine storage tanks, etc.

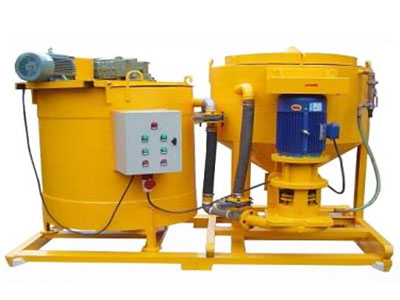

	Others: drying equipment, granulator, conveyor, conveyor, mixer, etc.
Label	There are no fixed sizes of stainless steel products only common sizes. All grades, sizes, thicknesses and surfaces can also be custom cut on request.

Chemical composition:

Grade	Chemical composition
Grade	C	Si	Mn	P	S	Ni	Cr
SUS347	≤0.08	≤1.00	≤2.00	≤0.045	≤0.030	9.00-12.00	17.00-19.00

Physical parameters:

Solid Solution Mechanical Properties Performance Chemical Composition
Yield Strength	Tensile Strength	Elongation %	hardness
≥200	≥520	≥40	≤200

Surface:

Surface Finish	Characteristics	Definiton	Application
NO.1	Silver, matt	Finished by hot-rolling, annealing and pickling characterized by white pickled surface	Applications without glossiness requirements
NO.2D	Silver	The finishes after cold rolling, by annealing ,pickling or other equivalenttreatment	Petrochemical equipment, auto parts. building materials, steel pipes etc.
NO.2B	Glossiness is stronger than No.2D	The finish after cold rolling, by annealing pickling and with SKIN PASS process	Almost all applications etc.
NO.BA	Glossiness As a mirror	Cold rolled, bright annealed and skin-passed, theproduct have excellent brightness and good reflexivity like mirror	Building materials, kitchenware etc.
NO.3	Rough grinding	Polished with abrasive meterial of grit#100-#120, have better brightness with discontinuous coarse stria	Nterior and exterior decoration, elect onicproduct appearance, kitchen equipment etc.
NO.4	Hairline grinding	Polished with abrasive meterial of grit#100-#120, have better brightness with discontinuous coarse stria	Bathtubs, food fittings, interior and exterior decor etc.
NO.7	Close to mirror grinding	Polished with abrasive meterial of grit#600	For art, for decoration etc.
NO.8	Mirror grinding	Polished with abrasive meterial of grit#800	Buildings, mirrors, decorations etc.
HL	Hairline grinding	Polished with suitable abrasive meterial on the NO.4 finish and has continuous streaks	Building interior and exterior decoration etc.
